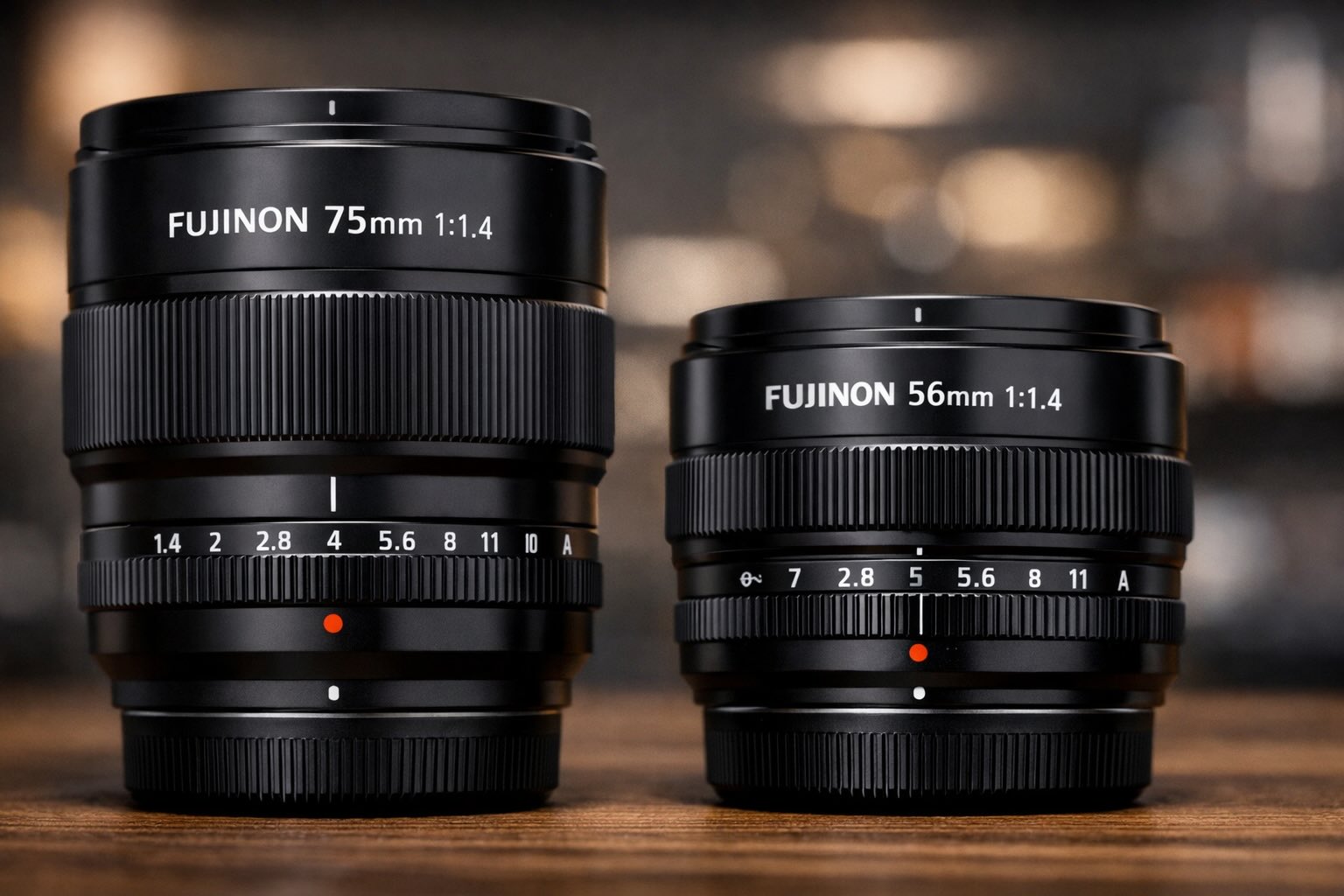

AI Generated rendering based on technical sketches of the patents
A couple of new lens patents have now been spotted by the Japanese website asobinet.
51mmF1.4
54mmF1.4
56mmF1.2
74mmF1.4
Interestingly the lenses seem to be designed for Full Frame rather than APS-C or GFX.
It’s not the first time that a full frame lens patents surfaced. We already spotted the 40mmF2.
Patent Details
Outline
[Public number] P2026011068
[Relase date] 2026-01-23
[Name of the invention] Image lens and image device
[Application date] 2024-07-10
[Applicant]
[Identification number] 306037311
[Name or title] Fujifilm Co., Ltd.
[Issue] Provide an imaging lens with a small F number, small, and good optical performance, and an imaging device with this imaging lens.
[Background technology]
[0002]
Traditionally, the imaging optical system described in patent document 1 below is known as an imaging lens that can be used for imaging equipment such as digital cameras.
[0004]
An imaging lens with a small F number, small size, and good optical performance is required. These levels of requirements are increasing year by year.
[0005]
This disclosure provides an imaging lens with a small F number, which is small, and retains good optical performance, and an imaging device with this imaging lens.

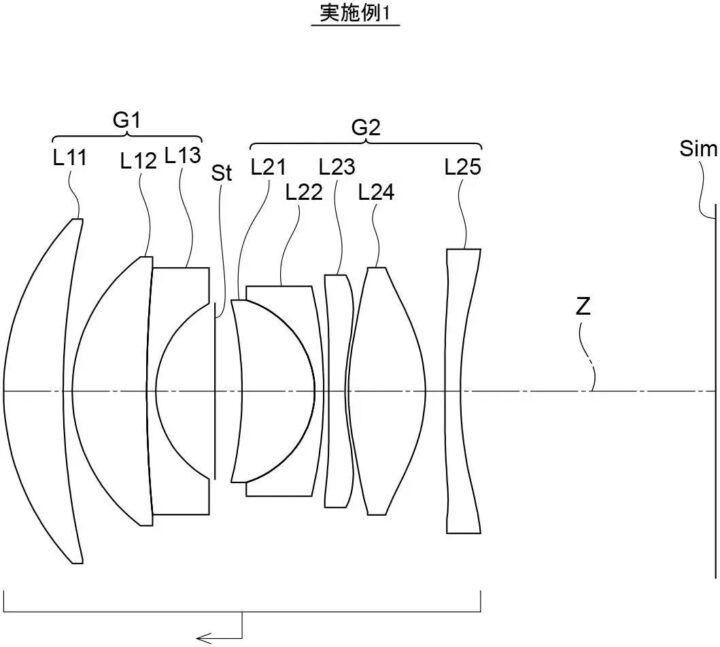

Example 1
Focal length: 54.6193
F value: 1.48
Angle of view: 43.0
Back focus: 28.3087

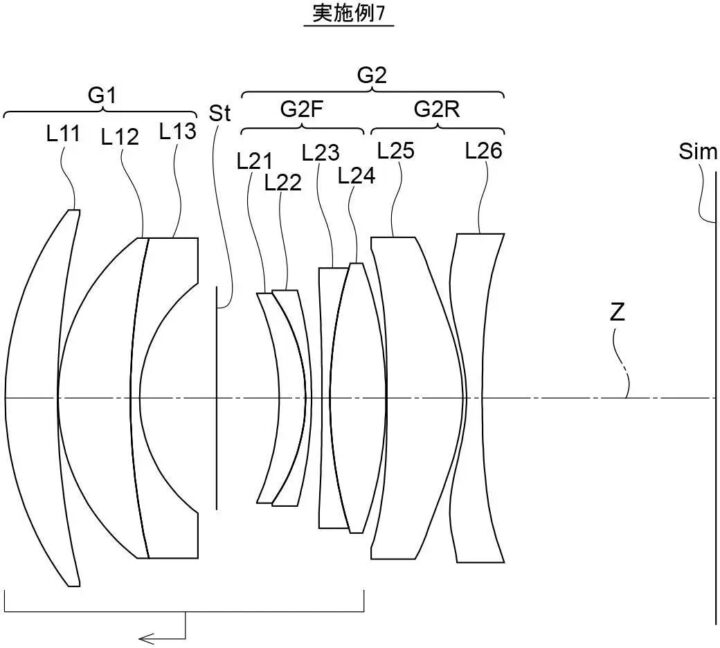

Example 7
Focal length: 51.0437
F value: 1.45
Angle of view: 45.8
Back focus: 22.1761

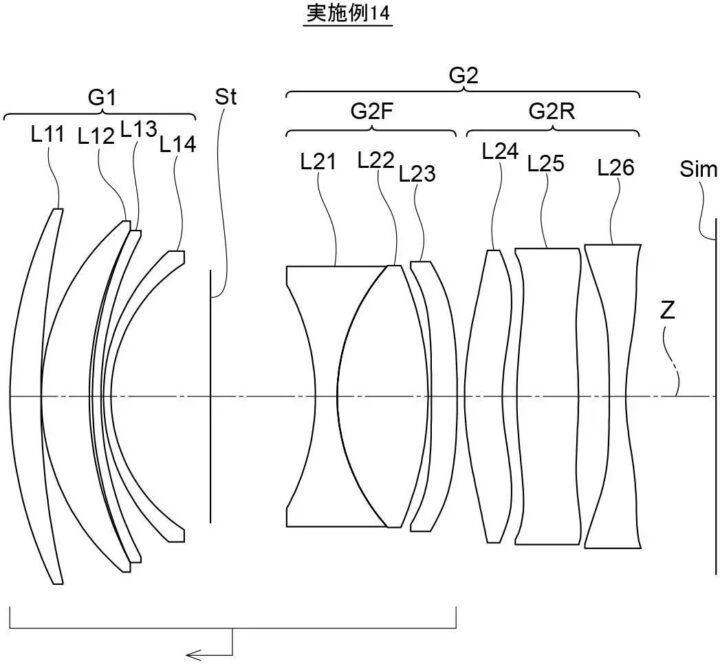

Example 14
Focal length: 56.0632
F value: 1.25
Angle of view: 42.2
Back focus: 10.9927

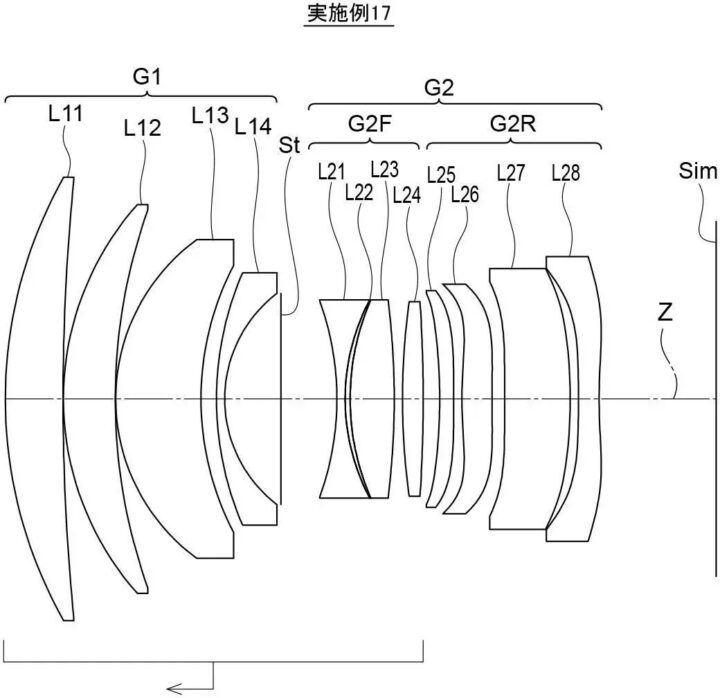

Example 17
Focal length: 73.9956
F value: 1.46
Angle of view: 32.0
Back focus: 14.1457
