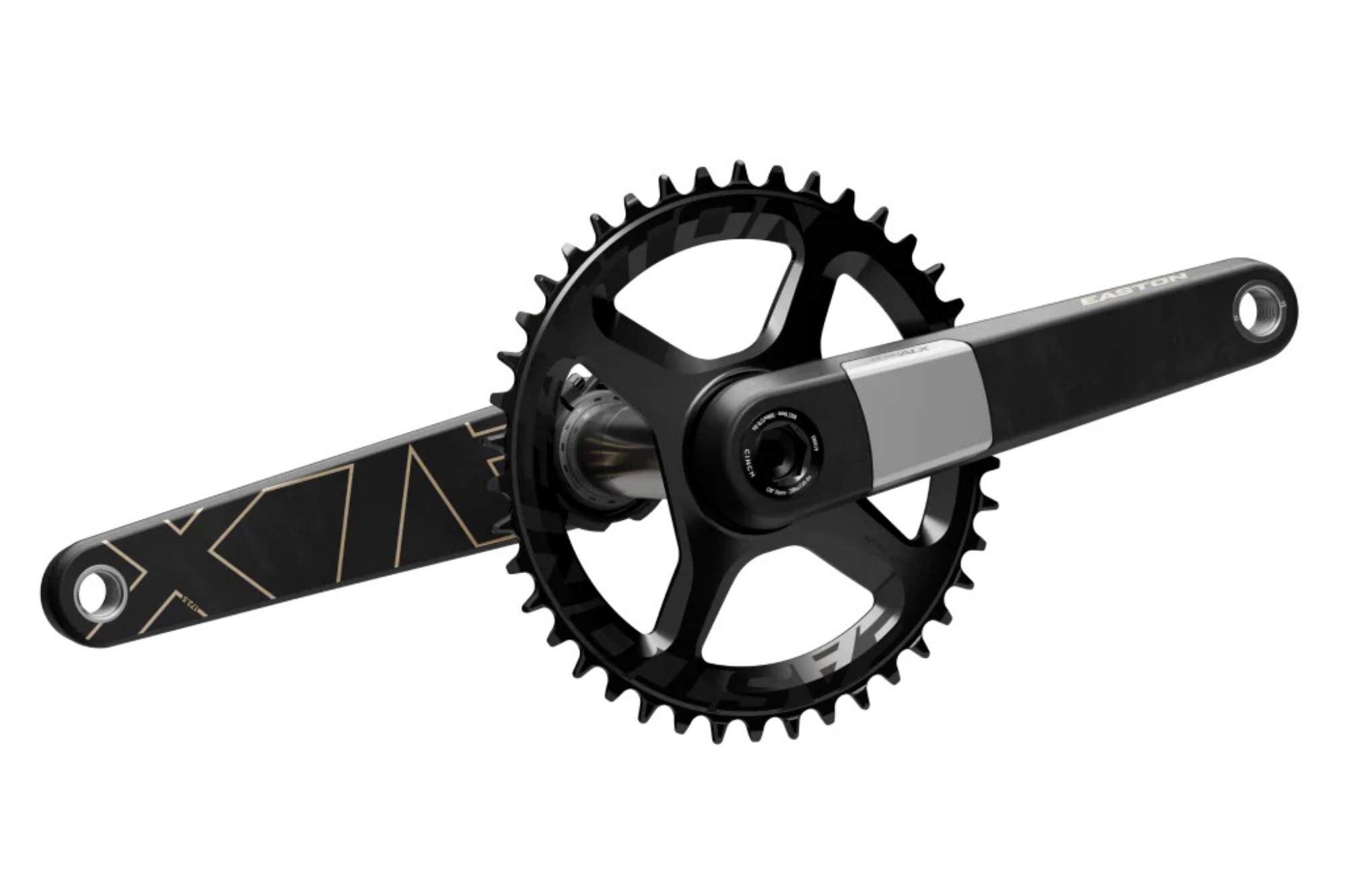

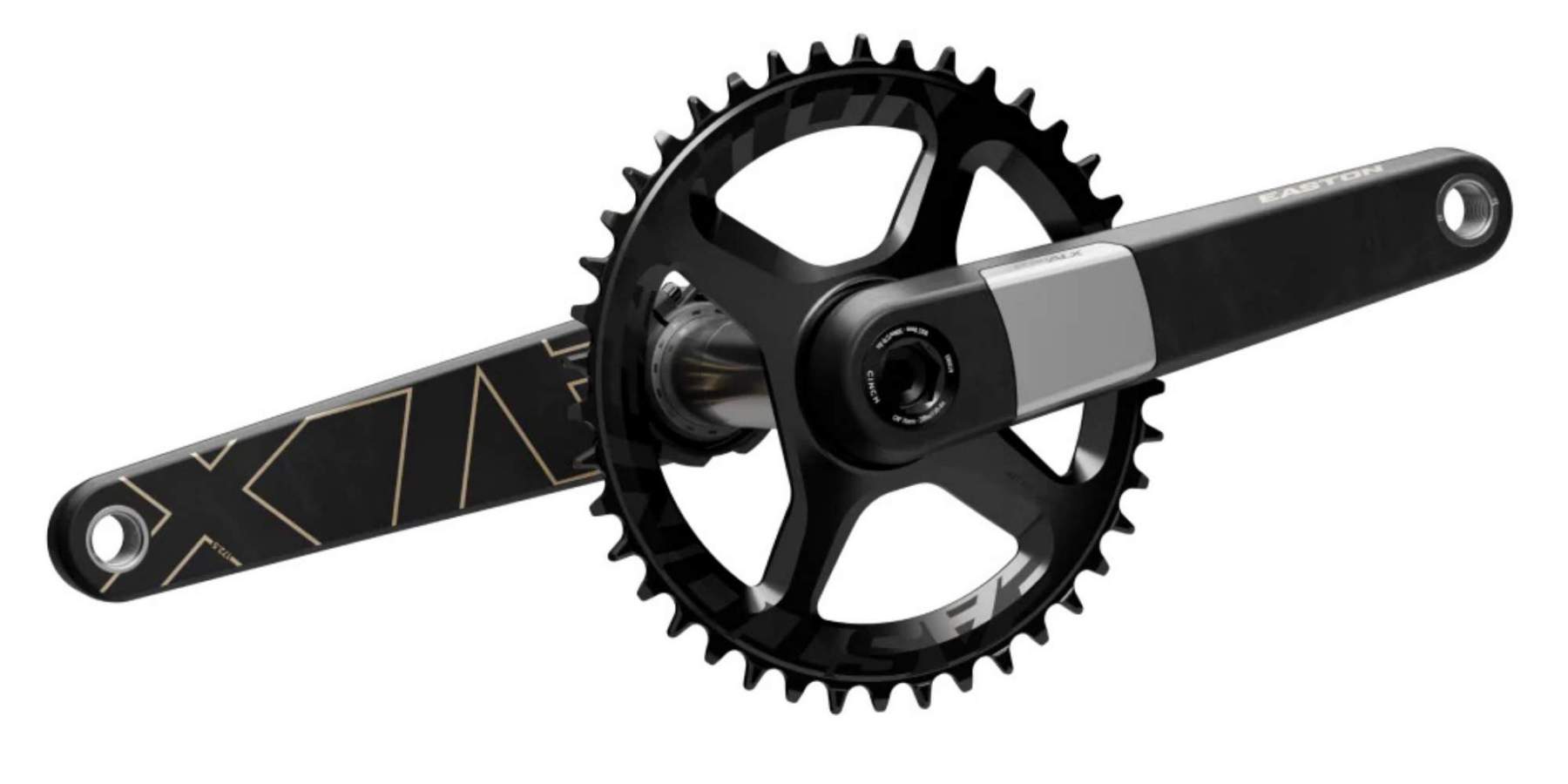

Replacing the EC90 SL, the new Easton EC90 ALX crankset is the lightest the company has ever made. With a wear plate and a design focused on minimizing excess weight, it’s a complete redesign. Get to know these new carbon cranks below…
The Easton EC90 ALX crankset is the brand’s new flagship carbon offering. Redesigned from the spindle to the arms and inserts, Easton says the EC90s are the lightest cranks they’ve ever made. According to the brand, each crank’s carbon fiber layup is bonded with ultralight inserts through a proprietary process and resin system. The cranks also feature a wear plate, created in response to rider feedback. It sits in the area most likely to suffer from shoe rub, which is a nice touch for a lightweight carbon crank.
The EC90 ALX is available in five crank lengths ranging from 160 to 175mm, with a variety of ring combinations available through Easton in both 1x and 2x configurations. The cranks are made of three materials: a carbon body, a stainless steel wear plate, and aluminum pedal inserts. With a standard Q factor of 150mm, the spindle diameter is 30mm. The LS spindle is compatible with Shimano road and SRAM 1x/2x drivetrains, while the LS wide spindle is compatible with Shimano gravel groupsets and includes two spacers. The claimed weight of the standard spindle, crank, and chainring is 419 grams. The EC90 ALX cranks retail for $490, with chainrings sold separately.
For more on the EC90 ALX cranks, visit EastonCycling.com.
