Federal transportation officials, Amtrak, and Penn Transformation Partners released on June 8 the first detailed renderings of the reconstruction of New York Penn Station since the Halmar-Skanska team was chosen as master developer last month.
The renderings provide the clearest view yet of how the project will remake the busy rail hub while keeping Madison Square Garden above. The images depict a reconfigured station featuring a new train hall along Eighth Avenue, a consolidated single-level concourse, expanded passenger circulation areas and a redesigned street-level presence.
The release marks the latest milestone in the approximately $8 billion redevelopment effort, which entered a predevelopment phase in May following a federal procurement process that selected Penn Transformation Partners to oversee delivery.
Penn Station serves more than 600,000 daily riders and supports operations by Amtrak, Long Island Rail Road and NJ Transit. The effort ranks among the nation’s largest active transportation infrastructure projects, with design development, environmental review and permitting expected to continue through 2027 ahead of a targeted groundbreaking by the end of that year.
New Train Hall, Single-Level Concourse
The renderings show a new grand entrance along Eighth Avenue, replacing the existing theater component attached to Madison Square Garden. Exterior views depict a stone-clad structure extending across the block between West 31st and West 33rd streets, creating a new public face for the station while preserving the arena itself.
Interior views show a single-level concourse above the platforms, with expanded waiting areas, retail space, restaurants and passenger services organized on a single level. The project team said the arrangement is intended to replace the station’s fragmented circulation system and improve passenger movement through the facility.
Additional diagrams indicate platform-level changes would include removal of columns where feasible and a 32% increase in vertical circulation capacity through new stairs, escalators and elevators. The plans also call for wider sidewalks, additional entry points and improved passenger pickup and drop-off access around the station.
Looking for quick answers on construction and engineering topics?
Try Ask ENR, our new smart AI search tool.
Ask ENR →
The design continues a central premise of the winning proposal: rebuilding Penn Station without relocating Madison Square Garden. Earlier concepts often centered on moving the arena to make way for a new terminal.
Under the current plan, the arena remains in place while the station beneath it is reconfigured and expanded.

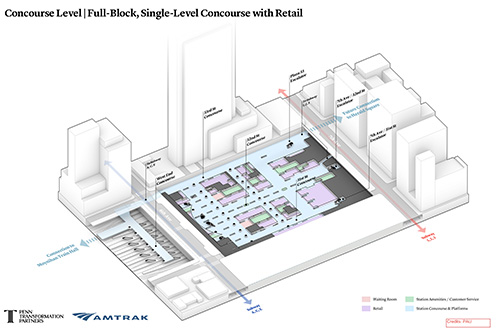

A Penn Transformation Partners planning diagram illustrates the proposed full-block, single-level concourse at Penn Station, showing new passenger circulation routes, retail areas, waiting spaces and connections to Moynihan Train Hall as part of the station’s reconstruction.
