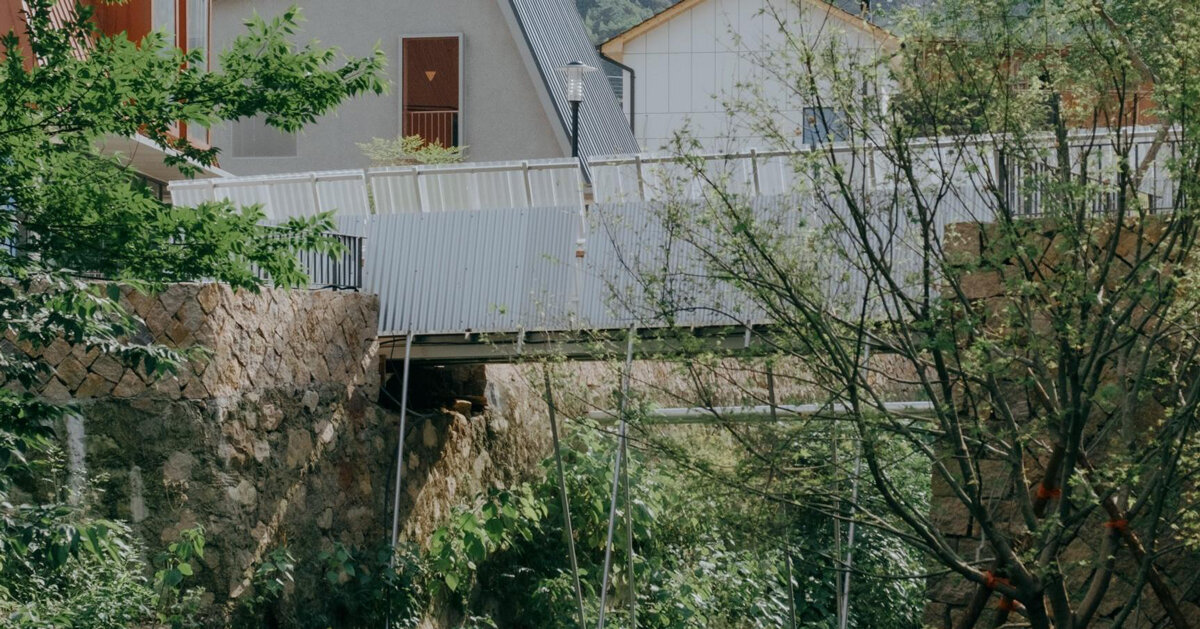

Easel bridge serves as both infrastructure and public furniture



The Easel Bridge is a 10-meter pedestrian crossing located in Yucun, Moganshan, Zhejiang Province, China, spanning Fuxi Creek. The structure, designed by XBTW OFFICE, introduces a spatial system composed of four inclined planes, transforming the act of crossing into a sequence of bodily positions oriented toward viewing, leaning, pausing, and interaction. One side of the bridge functions as an easel-like surface, enabling on-site sketching of the surrounding mountains, creek, and townscape. The opposite side is configured as a continuous backrest, positioning users between the landscape and ongoing drawing activities. The bridge therefore operates as both circulation infrastructure and a viewing and making device within the public realm. Situated within a waterfront commercial district that includes Liaoyuan Theater, retail, and dining spaces, the bridge forms part of Moganshan Town’s slow-mobility network. The surrounding setting brings together mountain, water, and urban fabric within a continuous visual field, which informs the spatial logic of the intervention.

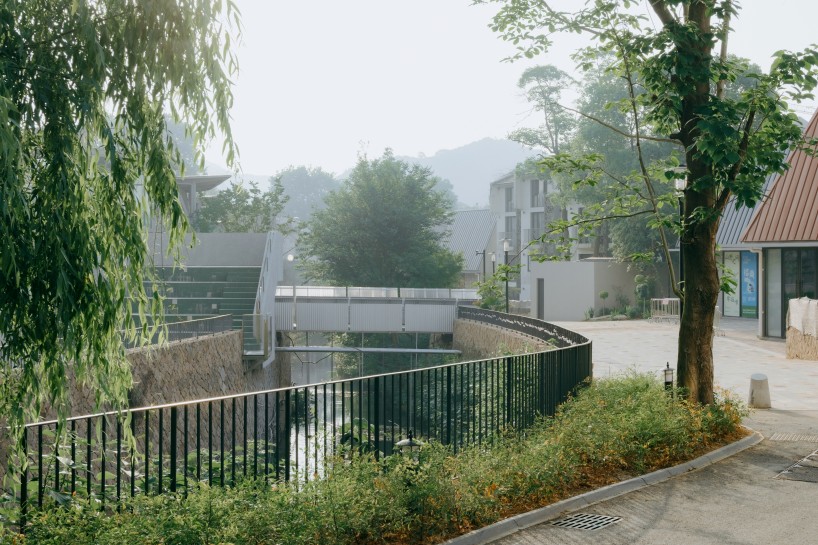

four inclined planes transform this bridge into a place for leaning, drawing and observing - 1
all images by Zhu Yumeng





XBTW Office uses corrugated metal and teak to shape Easel bridge



XBTW OFFICE’s architectural team composes the main structure out of corrugated metal panels and circular steel tubes. The easel-facing plane uses translucent frosted corrugated material, while the opposing side incorporates teak backrests to introduce a warmer tactile contrast within the metallic framework. Structurally, the bridge adopts a beam system that allows the four inclined planes to function independently from load-bearing requirements. This separation enables the planes to respond primarily to spatial and programmatic intent. The bridge is organized into 2-meter modules, each subtly rotated by 2–3 degrees. This incremental shift produces variations along the crossing, shaping a sequence of minor spatial adjustments that influence movement and perception across the span.

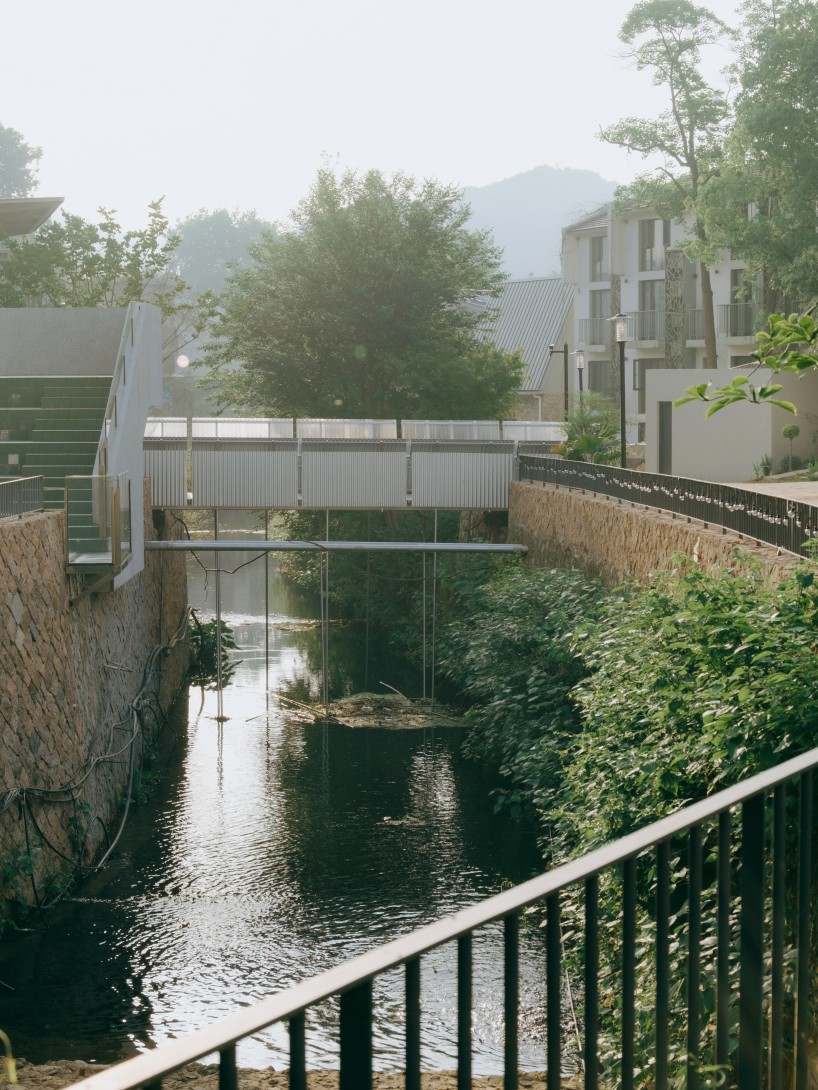

four inclined planes transform this bridge into a place for leaning, drawing and observing - 2
the Easel Bridge spans Fuxi Creek in Yucun, Moganshan

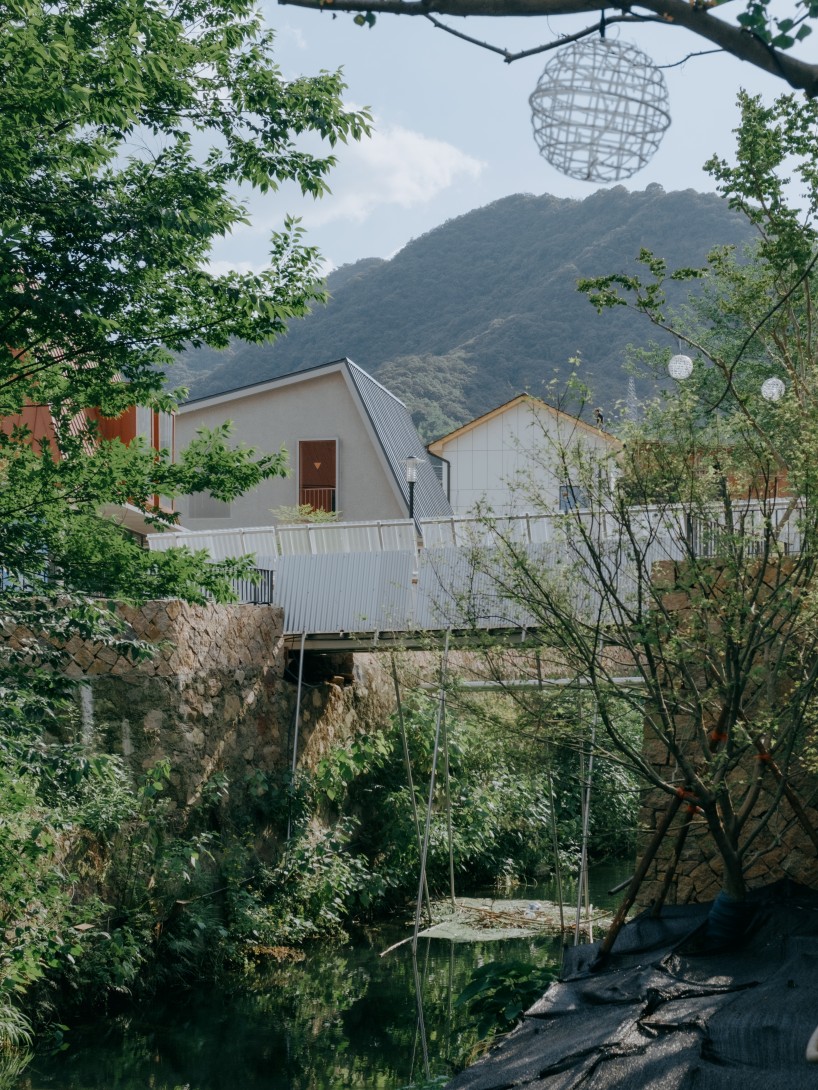

four inclined planes transform this bridge into a place for leaning, drawing and observing - 3
it is located within Moganshan’s waterfront commercial district

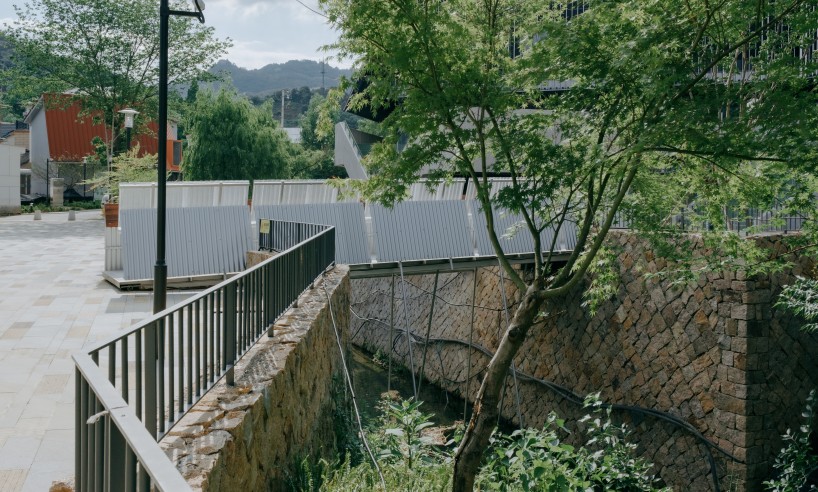

four inclined planes transform this bridge into a place for leaning, drawing and observing - 4
the crossing forms part of the town’s slow-mobility network

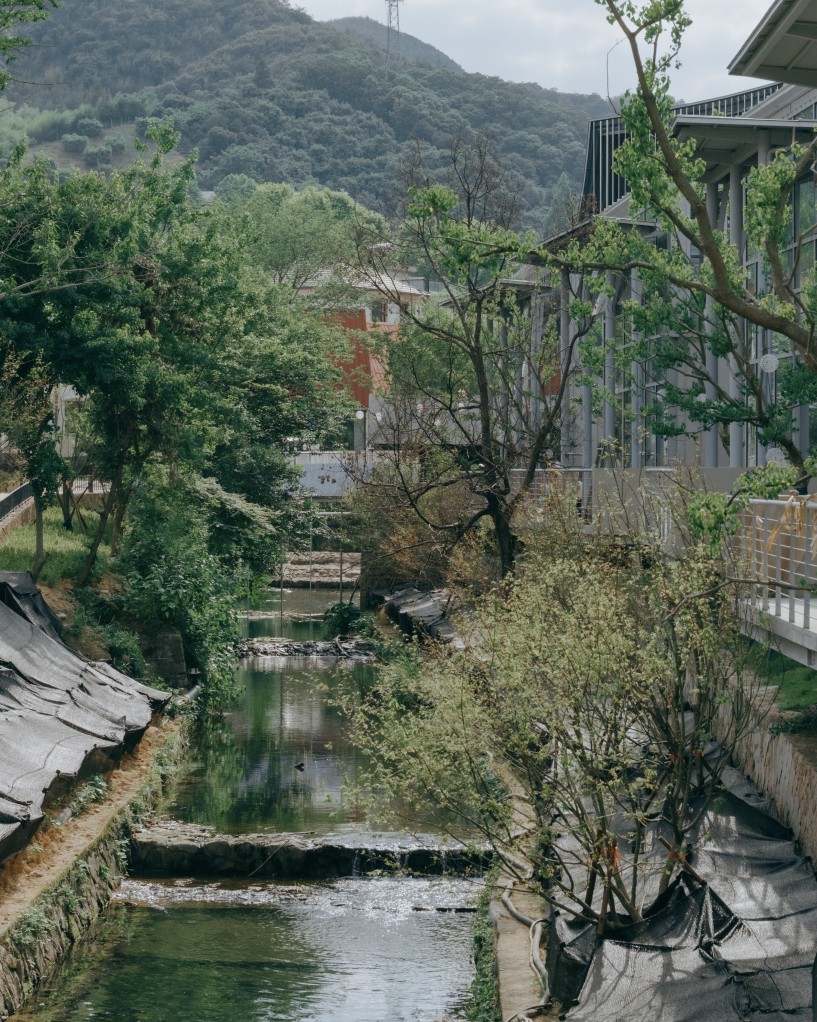

four inclined planes transform this bridge into a place for leaning, drawing and observing - 5
mountains, creek, and townscape become part of the experience

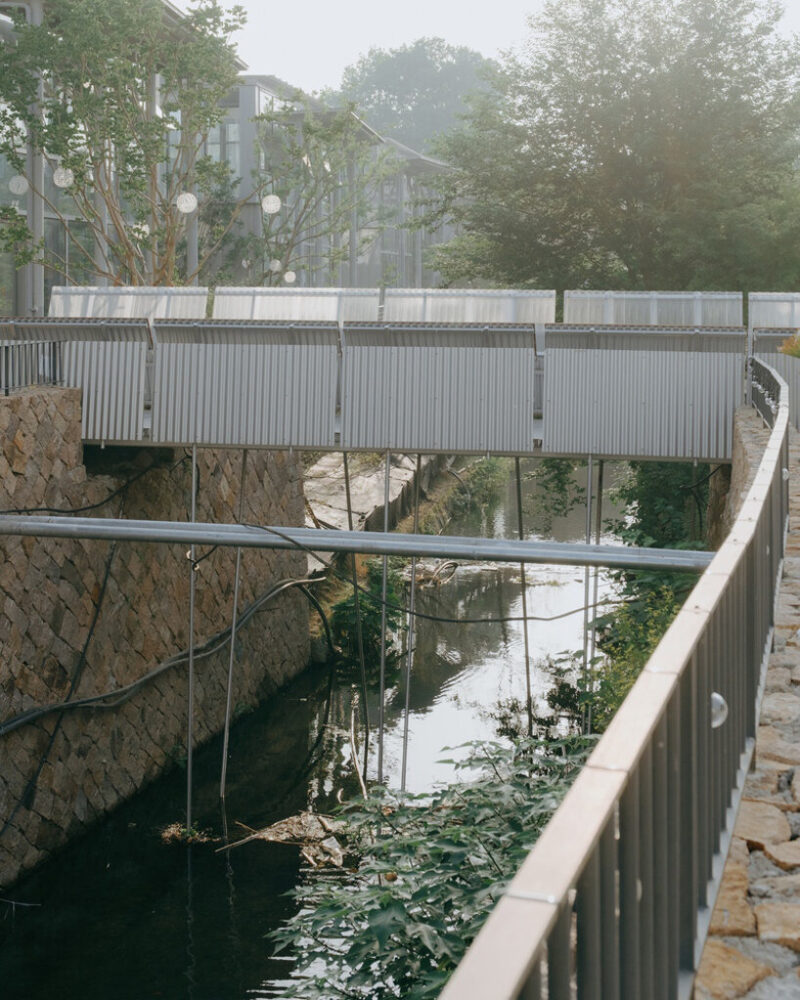

four inclined planes transform this bridge into a place for leaning, drawing and observing - 6
corrugated metal panels shape the bridge’s lightweight appearance

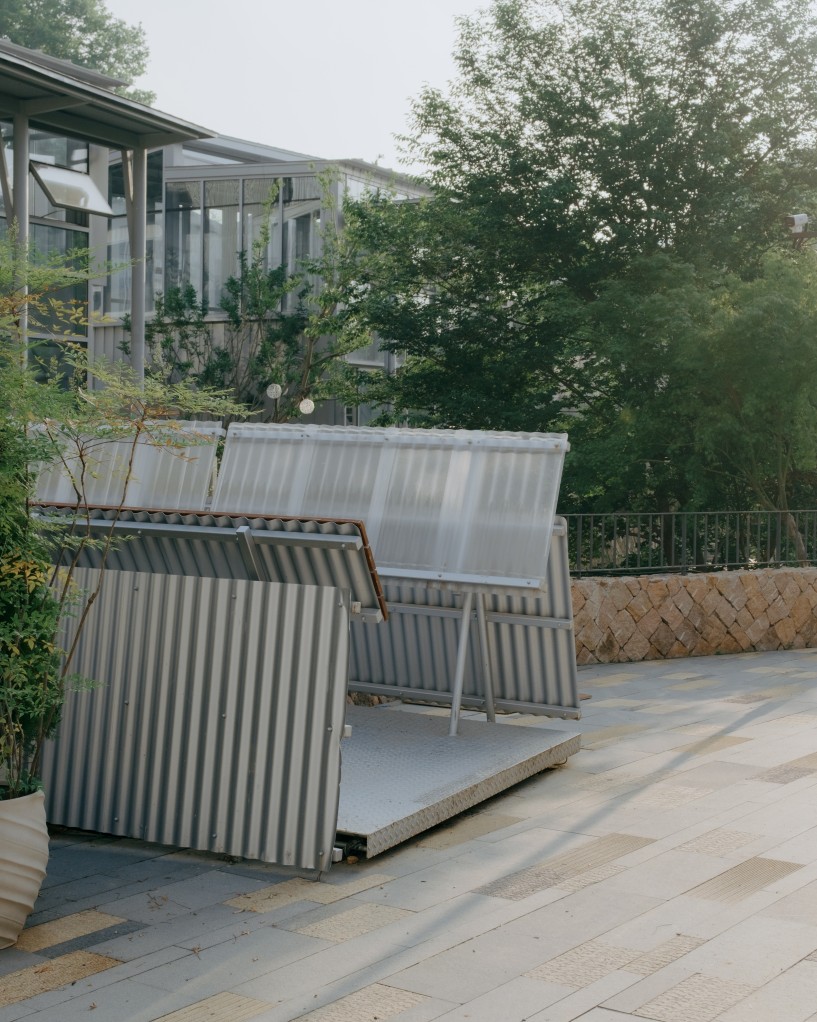

four inclined planes transform this bridge into a place for leaning, drawing and observing - 7
four inclined planes redefine the pedestrian crossing
